fiber_bundle::st2_lite Class Reference

A general symmetric tensor of degree 2 over an abstract vector space (volatile version). More...

#include <st2.h>

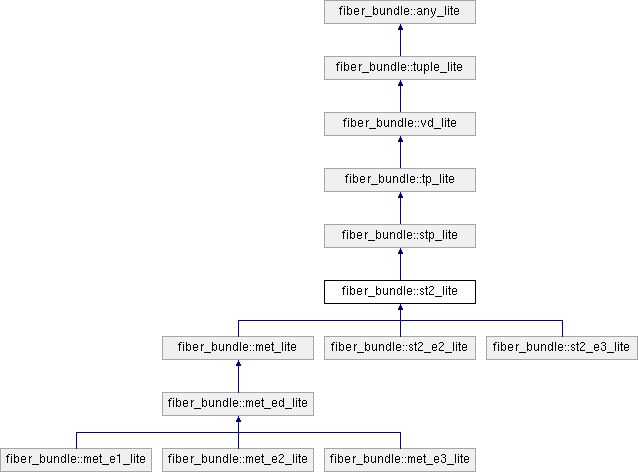

Inheritance diagram for fiber_bundle::st2_lite:
fiber_bundle::stp_lite fiber_bundle::tp_lite fiber_bundle::vd_lite fiber_bundle::tuple_lite fiber_bundle::any_lite fiber_bundle::met_lite fiber_bundle::st2_e2_lite fiber_bundle::st2_e3_lite fiber_bundle::met_ed_lite fiber_bundle::met_e1_lite fiber_bundle::met_e2_lite fiber_bundle::met_e3_lite

ST2 FACET OF CLASS ST2_LITE

typedef vd_value_type value_type
 The type of component in the fiber; the scalar type in the fiber vector space. More...

 st2_lite ()
 Default constructor. More...

 st2_lite (const st2_lite &xother)
 Copy constructor. More...

st2_liteoperator= (const st2_lite &xother)
 Assignment operator. More...

virtual ~st2_lite ()
 Destructor. More...

 st2_lite (const row_dofs_type &xrow_dofs)
 Creates a new instance with row dofs xrow_dofs. More...

st2_liteoperator= (const row_dofs_type &xrow_dofs)
 Assignment (from row_dofs_type) operator. More...

virtual value_type component (int xrow, int xcolumn) const
 The value of the component in a specified row and column. More...

virtual void put_component (int xrow, int xcolumn, value_type xcomp)
 Sets value of a component in a specified row and column. More...

virtual int index_for_row_column (int xrow, int xcolumn) const
 The index into linear storage of the component in a specified row and column. More...


TENSOR ALGEBRA (TP) FACET OF CLASS ST2_LITE

enum  static_const_int { P = 2 }
 The tensor degree (static version) More...

virtual int p () const
 Degree of this as an antisymmetric tensor space. More...


ABSTRACT POSET MEMBER FACET OF CLASS ST2_LITE

virtual const std::string & class_name () const
 The name of this class. More...

virtual st2_liteclone () const
 Virtual constructor, makes a new instance of the same type as this. More...

static const std::string & static_class_name ()
 The name of this class. More...


ANY FACET OF CLASS ST2_LITE

virtual bool is_ancestor_of (const any_lite &xother) const
 Conformance test; true if other conforms to this. More...

bool invariant () const
 Class invariant. More...


Additional Inherited Members

- Public Types inherited from fiber_bundle::tp_lite
enum  static_const_int { P = -1 }
 The degree of this tensor space. More...

typedef tp_table_dofs_type table_dofs_type
 The type of the table dofs. More...

typedef vd_lite vector_space_type
 Type of underlying vector space. More...

- Public Types inherited from fiber_bundle::vd_lite
typedef vd_dof_type dof_type
 The type of the degrees of freedom. More...

typedef vd_value_type value_type
 The type of component in the fiber; the scalar type in the fiber vector space. More...

typedef vd_table_dofs_type table_dofs_type
 The type of the table dofs. More...

typedef vd_row_dofs_type< double > row_dofs_type
 The type of the row dofs. More...

- Public Types inherited from fiber_bundle::tuple_lite
typedef tuple_table_dofs_type table_dofs_type
 The type of the table dofs. More...

- Public Types inherited from fiber_bundle::any_lite
typedef any_lite volatile_type
 The associated volatile type. More...

- Public Member Functions inherited from fiber_bundle::stp_lite
 stp_lite ()
 Default constructor. More...

 stp_lite (const stp_lite &xother)
 Copy constructor. More...

stp_liteoperator= (const stp_lite &xother)
 Assignment operator. More...

virtual ~stp_lite ()
 Destructor. More...

 stp_lite (const row_dofs_type &xrow_dofs)
 Creates a new instance with row dofs xrow_dofs. More...

stp_liteoperator= (const row_dofs_type &xrow_dofs)
 Assignment (from row_dofs_type) operator. More...

virtual int d () const
 Dimension of this as a vector space. More...

bool invariant () const
 Class invariant. More...

- Public Member Functions inherited from fiber_bundle::tp_lite
 tp_lite ()
 Default constructor. More...

 tp_lite (const tp_lite &xother)
 Copy constructor. More...

tp_liteoperator= (const tp_lite &xother)
 Assignment operator. More...

virtual ~tp_lite ()
 Destructor. More...

 tp_lite (const row_dofs_type &xrow_dofs)
 Creates a new instance with row dofs xrow_dofs. More...

tp_liteoperator= (const row_dofs_type &xrow_dofs)
 Assignment (from row_dofs_type) operator. More...

virtual int dd () const
 Dimension of the underlying vector space. More...

virtual pod_index_type vector_space_index () const
 Index of the underlying vector space. More...

table_dofs_type table_dofs () const
 The table dofs. More...

bool invariant () const
 Class invariant. More...

- Public Member Functions inherited from fiber_bundle::vd_lite
 vd_lite ()
 Default constructor. More...

 vd_lite (const vd_lite &xother)
 Copy constructor. More...

vd_liteoperator= (const vd_lite &xother)
 Copy assignment operator. More...

bool operator== (const vd_lite &xother) const
 True if this has the same components as xother. More...

virtual ~vd_lite ()
 Destructor. More...

 vd_lite (const row_dofs_type &xrow_dofs)
 Creates a new instance with row dofs xrow_dofs. More...

vd_liteoperator= (const row_dofs_type &xrow_dofs)
 Row_dofs_type assignment operator. More...

value_type component (int xindex) const
 The xindex-th component. More...

void put_component (int xindex, value_type xcomp)
 Set the xindex-th component to xcomp. More...

virtual void components (dof_type xresult[], int comps_dimension) const
 The values of all the components (preallocated version). More...

virtual void put_components (const dof_type xcomps[], int xcomps_dimension)
 Set values of all the components to the values in xcomps. More...

vd_liteoperator= (const value_type &xvalue)
 Value_type assignment operator; sets all components to xvalue. More...

bool operator== (const value_type &xvalue) const
 Equality comparison to scalar; true if and only if all components == xvalue. Especially useful for comparison to 0.0. More...

virtual value_typeoperator[] (int xindex)
 The value of the component corresponding to xindex (non const version). More...

virtual const value_typeoperator[] (int xindex) const
 The value of the component corresponding to xindex (const version). More...

virtual const tp_litetp_prototype (int xp) const
 Virtual constructor for general tensors of degree xp over this vector space. More...

virtual const atp_liteatp_prototype (int xp) const
 Prototype for antisymmetric tensors of degree xp over this vector space. More...

virtual const stp_litestp_prototype (int xp) const
 Prototype for symmetric tensors of degree xp over this vector space. More...

virtual int factor_ct () const
 Number of factors (components) in tuple. More...

table_dofs_type table_dofs () const
 The table dofs. More...

bool invariant () const
 Class invariant. More...

- Public Member Functions inherited from fiber_bundle::tuple_lite
 tuple_lite ()
 Default constructor. More...

 tuple_lite (const tuple_lite &xother)
 Copy constructor. More...

tuple_liteoperator= (const tuple_lite &xother)
 Assignment operator. More...

virtual ~tuple_lite ()
 Destructor. More...

table_dofs_type table_dofs () const
 The table dofs. More...

bool invariant () const
 Class invariant. More...

- Public Member Functions inherited from fiber_bundle::any_lite
virtual ~any_lite ()
 Destructor. More...

bool is_same_type (const any_lite &xother) const
 True if other is the same type as this. More...

bool invariant () const
 Class invariant, intended to be redefined in each descendant. More...

bool invariant_check () const
 True if invariant checking is enabled. More...

void enable_invariant_check () const
 Enable invariant checking. More...

void disable_invariant_check () const
 Disable invariant check. Intended for preventing recursive calls to invariant and for suppressing invariant checking during multi-phase initialization. More...

int disable_invariance_check_request_depth () const
 Number of times disable_invariant_check has been called without matching call to enable_invariant_check. More...

virtual void * row_dofs ()
 The row dofs for this instance (mutable version). More...

virtual const void * row_dofs () const
 The row dofs for this instance (const version). More...

- Static Public Member Functions inherited from fiber_bundle::stp_lite
static const std::string & static_class_name ()
 The name of this class. More...

- Static Public Member Functions inherited from fiber_bundle::tp_lite
static const std::string & static_class_name ()
 The name of this class. More...

- Static Public Member Functions inherited from fiber_bundle::vd_lite
static const tp_litestatic_tp_prototype (int xp)
 Static prototype for general tensors of degree xp over this vector space. More...

static const atp_litestatic_atp_prototype (int xp)
 Static prototype for antisymmetric tensors of degree xp over this vector space. More...

static const stp_litestatic_stp_prototype (int xp)
 Static prototype for symmetric tensors of degree xp over this vector space. More...

static const std::string & static_class_name ()
 The name of this class. More...

- Static Public Member Functions inherited from fiber_bundle::tuple_lite
static const std::string & static_class_name ()
 The name of this class. More...

- Static Public Member Functions inherited from fiber_bundle::any_lite
static const std::string & static_class_name ()
 The name of this class. More...

- Protected Member Functions inherited from fiber_bundle::any_lite
 any_lite ()
 Default constructor. More...


Detailed Description

A general symmetric tensor of degree 2 over an abstract vector space (volatile version).

Definition at line 43 of file st2.h.

Member Typedef Documentation

◆ value_type

The type of component in the fiber; the scalar type in the fiber vector space.

Definition at line 56 of file st2.h.

Member Enumeration Documentation

◆ static_const_int

The tensor degree (static version)

Hack:
Inline initialization of static const integral data members causes link error in MSC++; use enum instead.

Definition at line 137 of file st2.h.

Constructor & Destructor Documentation

◆ st2_lite() [1/3]

fiber_bundle::st2_lite::st2_lite ( )

Default constructor.

Postcondition

Definition at line 47 of file st2.cc.

Referenced by ~st2_lite().

◆ st2_lite() [2/3]

fiber_bundle::st2_lite::st2_lite ( const st2_lite xother)

Copy constructor.

Postcondition

Definition at line 62 of file st2.cc.

References operator=().

◆ ~st2_lite()

fiber_bundle::st2_lite::~st2_lite ( )
virtual

Destructor.

Definition at line 95 of file st2.cc.

References st2_lite().

Referenced by operator=().

◆ st2_lite() [3/3]

fiber_bundle::st2_lite::st2_lite ( const row_dofs_type xrow_dofs)

Creates a new instance with row dofs xrow_dofs.

Postcondition

Definition at line 108 of file st2.cc.

References operator=().

Member Function Documentation

◆ class_name()

const std::string & fiber_bundle::st2_lite::class_name ( ) const
virtual

The name of this class.

Postcondition
  • !result.empty()

Reimplemented from fiber_bundle::stp_lite.

Reimplemented in fiber_bundle::met_e3_lite, fiber_bundle::met_e2_lite, fiber_bundle::st2_e3_lite, fiber_bundle::st2_e2_lite, fiber_bundle::met_e1_lite, fiber_bundle::met_ed_lite, and fiber_bundle::met_lite.

Definition at line 299 of file st2.cc.

References static_class_name().

Referenced by p().

◆ clone()

fiber_bundle::st2_lite * fiber_bundle::st2_lite::clone ( ) const
virtual

Virtual constructor, makes a new instance of the same type as this.

Postcondition
  • result != 0
  • is_same_type(*result)

Reimplemented from fiber_bundle::stp_lite.

Reimplemented in fiber_bundle::met_e3_lite, fiber_bundle::met_e2_lite, fiber_bundle::st2_e3_lite, fiber_bundle::st2_e2_lite, fiber_bundle::met_e1_lite, fiber_bundle::met_ed_lite, and fiber_bundle::met_lite.

Definition at line 337 of file st2.cc.

Referenced by static_class_name().

◆ component()

fiber_bundle::st2_lite::value_type fiber_bundle::st2_lite::component ( int  xrow,
int  xcolumn
) const
virtual

The value of the component in a specified row and column.

Precondition
  • xrow >= 0 && xrow < dd()
  • xcolumn >= 0 && xcolumn < dd()
Postcondition

Definition at line 145 of file st2.cc.

References put_component().

Referenced by fiber_bundle::st2_algebra::determinant(), fiber_bundle::met_algebra::lower(), operator=(), fiber_bundle::t2_e2_lite::operator=(), fiber_bundle::t2_e3_lite::operator=(), fiber_bundle::met_algebra::raise(), fiber_bundle::tp_algebra::tensor(), and fiber_bundle::st2_algebra::trace().

◆ index_for_row_column()

int fiber_bundle::st2_lite::index_for_row_column ( int  xrow,
int  xcolumn
) const
virtual

The index into linear storage of the component in a specified row and column.

Precondition
  • 0 <= xrow && xrow < dd()
  • 0 <= xcolumn && xcolumn < dd()
Postcondition
  • result >= 0
  • result < dd()*dd()

Definition at line 190 of file st2.cc.

References p().

Referenced by put_component().

◆ invariant()

bool fiber_bundle::st2_lite::invariant ( ) const

Class invariant.

Invariant

Definition at line 389 of file st2.cc.

References fiber_bundle::st2::standard_schema_path().

Referenced by is_ancestor_of().

◆ is_ancestor_of()

bool fiber_bundle::st2_lite::is_ancestor_of ( const any_lite xother) const
virtual

Conformance test; true if other conforms to this.

Precondition
  • &xother != 0

Reimplemented from fiber_bundle::stp_lite.

Reimplemented in fiber_bundle::met_e3_lite, fiber_bundle::met_e2_lite, fiber_bundle::st2_e3_lite, fiber_bundle::st2_e2_lite, fiber_bundle::met_e1_lite, fiber_bundle::met_ed_lite, and fiber_bundle::met_lite.

Definition at line 370 of file st2.cc.

References invariant().

◆ operator=() [1/2]

fiber_bundle::st2_lite & fiber_bundle::st2_lite::operator= ( const st2_lite xother)

Assignment operator.

Postcondition

Definition at line 79 of file st2.cc.

References ~st2_lite().

Referenced by st2_lite().

◆ operator=() [2/2]

fiber_bundle::st2_lite & fiber_bundle::st2_lite::operator= ( const row_dofs_type xrow_dofs)

Assignment (from row_dofs_type) operator.

Definition at line 125 of file st2.cc.

References component().

◆ p()

int fiber_bundle::st2_lite::p ( ) const
virtual

Degree of this as an antisymmetric tensor space.

Postcondition
  • result == 2

Reimplemented from fiber_bundle::tp_lite.

Definition at line 240 of file st2.cc.

References class_name().

Referenced by index_for_row_column().

◆ put_component()

void fiber_bundle::st2_lite::put_component ( int  xrow,
int  xcolumn,
value_type  xcomp
)
virtual

Sets value of a component in a specified row and column.

Precondition
  • xrow >= 0 && xrow < dd()
  • xcolumn >= 0 && xcolumn < dd()
Postcondition
  • isunordered_or_equals(component(index_for_row_column(xrow, xcolumn)), xcomp)

Definition at line 167 of file st2.cc.

References index_for_row_column(), and sheaf::isunordered_or_equals().

Referenced by component(), and fiber_bundle::tp_algebra::sym().

◆ static_class_name()

const std::string & fiber_bundle::st2_lite::static_class_name ( )
static

The name of this class.

Postcondition
  • !result.empty()

Definition at line 318 of file st2.cc.

References clone().

Referenced by class_name().


The documentation for this class was generated from the following files:
