fiber_bundle::block_connectivity Class Reference

Zone to node connectivity relation for a block of zones of a given type. More...

#include <block_connectivity.h>

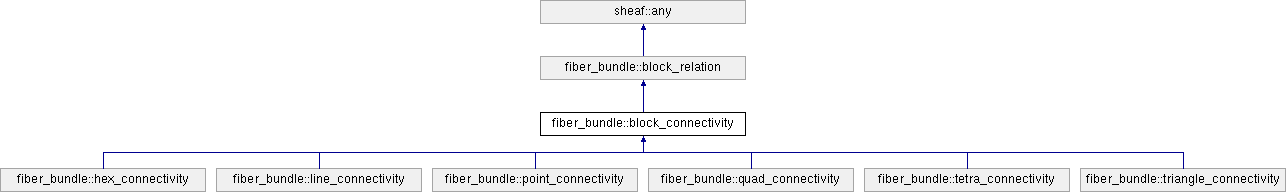

Inheritance diagram for fiber_bundle::block_connectivity:

BLOCK_CONNECTIVITY FACET
size_type	_element_ct
	The number of elements. More...
size_type	_node_ct
	The number of distinct nodes. More...
size_type	_node_id_ct
	the number of entyries in _node_ids. More...
pod_index_type *	_node_ids
	The nodal connectivity array. More...
bool	_delete_node_ids
	True if destructor of this should delete _node_ids. More...
size_type	_nodes_per_element
	The number of nodes per element. More...
pod_index_type	_start_id
	The id given to the first node id generated. Mostly only useful for creating 1 (vs 0) based node numbering. More...
virtual	~block_connectivity ()
	Destructor. More...
size_type	element_ct () const
	The number of elements. More...
size_type	node_ct () const
	The number of distinct nodes. More...
pod_index_type *	node_ids ()
	The nodal connectivity array. More...
const pod_index_type *	node_ids () const
	The nodal connectivity array. More...
bool	delete_node_ids () const
	True if destructor of this should delete _node_ids. More...
size_type	node_id_ct () const
	The number of entries in node_ids(). More...
size_type	nodes_per_element () const
	The number of nodes per element. More...
pod_index_type	start_id () const
	The id given to the first node id generated. More...
virtual void	to_stream (std::ostream &xos) const
	Print to stream xos. More...
block_connectivity &	operator= (const block_connectivity &xother)
	Assignment operator. More...
virtual bool	operator== (const block_connectivity &xother) const
	Equality operator. More...
	block_connectivity ()
	Default constructor. More...
	block_connectivity (const block_connectivity &xother)
	Copy constructor. More...
	block_connectivity (const pod_index_type *xnode_ids, size_type xnode_id_ct, size_type xnodes_per_element, size_type xnode_ct)
	Creates an instance with node_ids() == xnode_ids, node_id_ct() == xnode_id_ct, and start_id() == xstart_id. If xnode_ct == 0, the number of distinct nodes will be computed, otherwise node_ct() == xnode_ct. More...
	block_connectivity (pod_index_type xstart_id)
	Parameter xstart_id is the id given to the first node id generated. Mostly only useful for creating 1 (vs 0) based node numbering. More...

ANY FACET
virtual block_connectivity *	clone () const =0
	Virtual constructor, makes a new instance of the same type as this. More...
virtual bool	invariant () const
	Class invariant. More...
virtual bool	is_ancestor_of (const any *other) const
	Conformance test; true if other conforms to this. More...

Additional Inherited Members
Public Types inherited from fiber_bundle::block_relation
enum	cell_type {   POINT, LINE, QUAD, TRIANGLE,   HEX, TETRA, CELL_TYPE_END }
	Cell types. More...
Public Member Functions inherited from fiber_bundle::block_relation
	block_relation ()
	Default constructor. More...
virtual	~block_relation ()
	Destructor. More...
virtual cell_type	element_type () const =0
	The element (zone) type. More...
Public Member Functions inherited from sheaf::any
bool	is_same_type (const any *other) const
	True if other is the same type as this. More...
virtual	~any ()
	Destructor. More...
bool	invariant_check () const
	True if invariant checking is enabled. More...
void	enable_invariant_check () const
	Enable invariant checking. More...
void	disable_invariant_check () const
	Disable invariant check. Intended for preventing recursive calls to invariant and for suppressing invariant checking during multi-phase initialization. More...
int	disable_invariance_check_request_depth () const
	Number of times disable_invariant_check has been called without matching call to enable_invariant_check. More...
Protected Member Functions inherited from sheaf::any
	any ()
	default constructor More...

Detailed Description

Zone to node connectivity relation for a block of zones of a given type.

Definition at line 47 of file block_connectivity.h.

Constructor & Destructor Documentation

~block_connectivity()

fiber_bundle::block_connectivity::~block_connectivity ( )

virtual

Destructor.

Definition at line 35 of file block_connectivity.cc.

References element_ct().

block_connectivity() [1/4]

fiber_bundle::block_connectivity::block_connectivity ( )

protected

Default constructor.

Postcondition

• element_ct() == 0

• node_ct() == 0

• node_ids() == 0

• !delete_node_ids()

• node_id_ct() == 0

• nodes_per_element() == 0

• start_id() == 0

Definition at line 201 of file block_connectivity.cc.

Referenced by block_connectivity(), fiber_bundle::hex_connectivity::hex_connectivity(), fiber_bundle::line_connectivity::line_connectivity(), operator==(), fiber_bundle::point_connectivity::point_connectivity(), fiber_bundle::quad_connectivity::quad_connectivity(), fiber_bundle::tetra_connectivity::tetra_connectivity(), and fiber_bundle::triangle_connectivity::triangle_connectivity().

block_connectivity() [2/4]

fiber_bundle::block_connectivity::block_connectivity ( const block_connectivity &  xother )

protected

Copy constructor.

Postcondition

• invariant()

• (*this) == xother

Definition at line 231 of file block_connectivity.cc.

References block_connectivity().

block_connectivity() [3/4]

fiber_bundle::block_connectivity::block_connectivity ( const pod_index_type *  xnode_ids, size_type  xnode_id_ct, size_type  xnodes_per_element, size_type  xnode_ct  )

protected

Creates an instance with node_ids() == xnode_ids, node_id_ct() == xnode_id_ct, and start_id() == xstart_id. If xnode_ct == 0, the number of distinct nodes will be computed, otherwise node_ct() == xnode_ct.

Precondition

• xnode_ids != 0

• xnode_id_ct > 0

• xnodes_per_element > 0

Postcondition

• element_ct() == xnode_id_ct/xnodes_per_element

• xnode_ct > 0 ? node_ct() == xnode_ct : node_ct() > 0

• node_ids() == xnode_ids

• !delete_node_ids()

• node_id_ct() == xnode_id_ct

• nodes_per_element() == xnodes_per_element

Definition at line 259 of file block_connectivity.cc.

References block_connectivity(), and fiber_bundle::vd_algebra::max().

block_connectivity() [4/4]

fiber_bundle::block_connectivity::block_connectivity ( pod_index_type  xstart_id )

protected

Parameter xstart_id is the id given to the first node id generated. Mostly only useful for creating 1 (vs 0) based node numbering.

Postcondition

• node_ids() == 0

• !delete_node_ids()

• node_id_ct() == 0

• start_id() == xstart_id

Definition at line 315 of file block_connectivity.cc.

References invariant().

Member Function Documentation

clone()

virtual block_connectivity* fiber_bundle::block_connectivity::clone ( ) const

pure virtual

Virtual constructor, makes a new instance of the same type as this.

Implements fiber_bundle::block_relation.

Implemented in fiber_bundle::hex_connectivity, fiber_bundle::tetra_connectivity, fiber_bundle::triangle_connectivity, fiber_bundle::line_connectivity, and fiber_bundle::point_connectivity.

delete_node_ids()

bool fiber_bundle::block_connectivity::delete_node_ids

(

)

const

True if destructor of this should delete _node_ids.

Definition at line 79 of file block_connectivity.cc.

References node_id_ct().

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), fiber_bundle::triangle_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::hex_connectivity(), fiber_bundle::line_connectivity::line_connectivity(), node_ids(), fiber_bundle::point_connectivity::point_connectivity(), fiber_bundle::quad_connectivity::quad_connectivity(), fiber_bundle::tetra_connectivity::tetra_connectivity(), and fiber_bundle::triangle_connectivity::triangle_connectivity().

element_ct()

size_type fiber_bundle::block_connectivity::element_ct

(

)

const

The number of elements.

Definition at line 51 of file block_connectivity.cc.

References node_ct().

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), fiber_bundle::triangle_connectivity::create_connectivity(), fiber_bundle::zone_nodes_block_crg_interval::get_dof_tuple_ids(), fiber_bundle::zone_nodes_block_crg_interval::get_private_data(), fiber_bundle::zone_nodes_block_crg_interval::get_size(), fiber_bundle::hex_connectivity::hex_connectivity(), fiber_bundle::line_connectivity::line_connectivity(), fiber_bundle::zone_nodes_block::new_state(), fiber_bundle::point_connectivity::point_connectivity(), fiber_bundle::block_adjacency::put_connectivity(), fiber_bundle::quad_connectivity::quad_connectivity(), fiber_bundle::tetra_connectivity::tetra_connectivity(), fiber_bundle::triangle_connectivity::triangle_connectivity(), and ~block_connectivity().

invariant()

bool fiber_bundle::block_connectivity::invariant ( ) const

virtual

Class invariant.

Invariant

• block_relation::invariant()

• delete_node_ids() ? node_ids() != 0 : true

Reimplemented from fiber_bundle::block_relation.

Reimplemented in fiber_bundle::hex_connectivity, fiber_bundle::tetra_connectivity, fiber_bundle::triangle_connectivity, fiber_bundle::line_connectivity, and fiber_bundle::point_connectivity.

Definition at line 345 of file block_connectivity.cc.

References is_ancestor_of().

Referenced by block_connectivity(), fiber_bundle::quad_connectivity::element_type(), fiber_bundle::point_connectivity::invariant(), fiber_bundle::line_connectivity::invariant(), fiber_bundle::triangle_connectivity::invariant(), fiber_bundle::tetra_connectivity::invariant(), and fiber_bundle::hex_connectivity::invariant().

is_ancestor_of()

bool fiber_bundle::block_connectivity::is_ancestor_of ( const any *  other ) const

virtual

Conformance test; true if other conforms to this.

Precondition

• other != 0

Reimplemented from fiber_bundle::block_relation.

Reimplemented in fiber_bundle::hex_connectivity, fiber_bundle::tetra_connectivity, fiber_bundle::triangle_connectivity, fiber_bundle::line_connectivity, and fiber_bundle::point_connectivity.

Definition at line 379 of file block_connectivity.cc.

References fiber_bundle::operator<<().

Referenced by invariant().

node_ct()

size_type fiber_bundle::block_connectivity::node_ct

(

)

const

The number of distinct nodes.

Definition at line 58 of file block_connectivity.cc.

References node_ids().

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), fiber_bundle::triangle_connectivity::create_connectivity(), element_ct(), fiber_bundle::zone_nodes_block_crg_interval::get_size(), fiber_bundle::hex_connectivity::hex_connectivity(), fiber_bundle::line_connectivity::line_connectivity(), fiber_bundle::point_connectivity::point_connectivity(), fiber_bundle::quad_connectivity::quad_connectivity(), fiber_bundle::tetra_connectivity::tetra_connectivity(), and fiber_bundle::triangle_connectivity::triangle_connectivity().

node_id_ct()

sheaf::size_type fiber_bundle::block_connectivity::node_id_ct

(

)

const

The number of entries in node_ids().

Definition at line 86 of file block_connectivity.cc.

References nodes_per_element().

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), fiber_bundle::triangle_connectivity::create_connectivity(), delete_node_ids(), fiber_bundle::zone_nodes_block_crg_interval::get_private_data(), fiber_bundle::hex_connectivity::hex_connectivity(), fiber_bundle::line_connectivity::line_connectivity(), fiber_bundle::unstructured_block::new_state(), fiber_bundle::point_connectivity::point_connectivity(), fiber_bundle::block_adjacency::put_connectivity(), fiber_bundle::quad_connectivity::quad_connectivity(), fiber_bundle::tetra_connectivity::tetra_connectivity(), and fiber_bundle::triangle_connectivity::triangle_connectivity().

node_ids() [1/2]

sheaf::pod_index_type * fiber_bundle::block_connectivity::node_ids

(

)

The nodal connectivity array.

Definition at line 65 of file block_connectivity.cc.

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), fiber_bundle::triangle_connectivity::create_connectivity(), fiber_bundle::zone_nodes_block_crg_interval::get_private_data(), fiber_bundle::hex_connectivity::hex_connectivity(), fiber_bundle::line_connectivity::line_connectivity(), fiber_bundle::unstructured_block::new_state(), node_ct(), operator=(), fiber_bundle::point_connectivity::point_connectivity(), fiber_bundle::block_adjacency::put_connectivity(), fiber_bundle::quad_connectivity::quad_connectivity(), fiber_bundle::tetra_connectivity::tetra_connectivity(), and fiber_bundle::triangle_connectivity::triangle_connectivity().

node_ids() [2/2]

const sheaf::pod_index_type * fiber_bundle::block_connectivity::node_ids

(

)

const

The nodal connectivity array.

Definition at line 72 of file block_connectivity.cc.

References delete_node_ids().

nodes_per_element()

size_type fiber_bundle::block_connectivity::nodes_per_element

(

)

const

The number of nodes per element.

Definition at line 93 of file block_connectivity.cc.

References start_id().

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), fiber_bundle::triangle_connectivity::create_connectivity(), fiber_bundle::zone_nodes_block_crg_interval::get_private_data(), fiber_bundle::hex_connectivity::hex_connectivity(), fiber_bundle::line_connectivity::line_connectivity(), node_id_ct(), fiber_bundle::point_connectivity::point_connectivity(), fiber_bundle::block_adjacency::put_connectivity(), fiber_bundle::quad_connectivity::quad_connectivity(), fiber_bundle::tetra_connectivity::tetra_connectivity(), and fiber_bundle::triangle_connectivity::triangle_connectivity().

operator=()

fiber_bundle::block_connectivity & fiber_bundle::block_connectivity::operator=

(

const block_connectivity &

xother

)

Assignment operator.

Postcondition

• invariant()

• *this == xother

• node_ids() != xother.node_ids()

• delete_node_ids()

Definition at line 127 of file block_connectivity.cc.

References _element_ct, _node_ct, _node_id_ct, _node_ids, _nodes_per_element, _start_id, node_ids(), and operator==().

Referenced by to_stream().

operator==()

bool fiber_bundle::block_connectivity::operator== ( const block_connectivity &  xother ) const

virtual

Equality operator.

Definition at line 171 of file block_connectivity.cc.

References _element_ct, _node_ct, _node_id_ct, _node_ids, _nodes_per_element, _start_id, and block_connectivity().

Referenced by operator=().

start_id()

sheaf::pod_index_type fiber_bundle::block_connectivity::start_id

(

)

const

The id given to the first node id generated.

Definition at line 100 of file block_connectivity.cc.

References to_stream().

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), fiber_bundle::triangle_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::hex_connectivity(), fiber_bundle::line_connectivity::line_connectivity(), nodes_per_element(), fiber_bundle::point_connectivity::point_connectivity(), fiber_bundle::quad_connectivity::quad_connectivity(), fiber_bundle::tetra_connectivity::tetra_connectivity(), and fiber_bundle::triangle_connectivity::triangle_connectivity().

to_stream()

void fiber_bundle::block_connectivity::to_stream ( std::ostream &  xos ) const

virtual

Print to stream xos.

Definition at line 107 of file block_connectivity.cc.

References operator=().

Referenced by fiber_bundle::operator<<(), and start_id().

Member Data Documentation

_delete_node_ids

bool fiber_bundle::block_connectivity::_delete_node_ids

protected

True if destructor of this should delete _node_ids.

Definition at line 171 of file block_connectivity.h.

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), and fiber_bundle::triangle_connectivity::create_connectivity().

_element_ct

size_type fiber_bundle::block_connectivity::_element_ct

protected

The number of elements.

Definition at line 151 of file block_connectivity.h.

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), fiber_bundle::triangle_connectivity::create_connectivity(), operator=(), and operator==().

_node_ct

size_type fiber_bundle::block_connectivity::_node_ct

protected

The number of distinct nodes.

Definition at line 156 of file block_connectivity.h.

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), fiber_bundle::triangle_connectivity::create_connectivity(), operator=(), and operator==().

_node_id_ct

size_type fiber_bundle::block_connectivity::_node_id_ct

protected

the number of entyries in _node_ids.

Definition at line 161 of file block_connectivity.h.

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), fiber_bundle::triangle_connectivity::create_connectivity(), operator=(), and operator==().

_node_ids

pod_index_type* fiber_bundle::block_connectivity::_node_ids

protected

The nodal connectivity array.

Definition at line 166 of file block_connectivity.h.

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), fiber_bundle::triangle_connectivity::create_connectivity(), operator=(), and operator==().

_nodes_per_element

size_type fiber_bundle::block_connectivity::_nodes_per_element

protected

The number of nodes per element.

Definition at line 176 of file block_connectivity.h.

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), fiber_bundle::triangle_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::hex_connectivity(), fiber_bundle::line_connectivity::line_connectivity(), operator=(), operator==(), fiber_bundle::point_connectivity::point_connectivity(), fiber_bundle::quad_connectivity::quad_connectivity(), and fiber_bundle::tetra_connectivity::tetra_connectivity().

_start_id

pod_index_type fiber_bundle::block_connectivity::_start_id

protected

The id given to the first node id generated. Mostly only useful for creating 1 (vs 0) based node numbering.

Definition at line 182 of file block_connectivity.h.

Referenced by fiber_bundle::point_connectivity::create_connectivity(), fiber_bundle::line_connectivity::create_connectivity(), fiber_bundle::quad_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::create_connectivity(), fiber_bundle::tetra_connectivity::create_connectivity(), fiber_bundle::triangle_connectivity::create_connectivity(), fiber_bundle::hex_connectivity::node_id(), fiber_bundle::tetra_connectivity::node_id(), operator=(), and operator==().

---

The documentation for this class was generated from the following files:

• block_connectivity.h
• block_connectivity.cc
